Products Center
>
>
Medium Voltage Switchgear

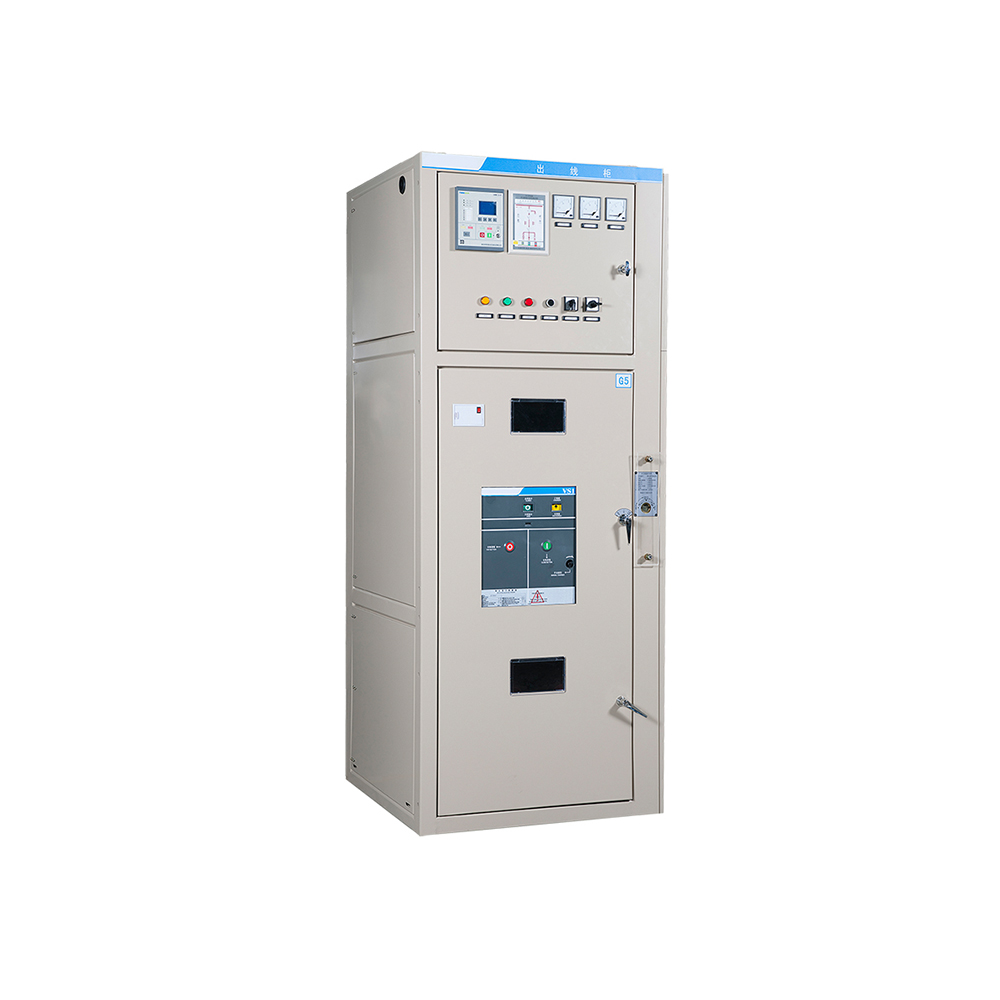

XGN66A-12 fixed metal enclosed switchgear
XGN66A-12 fixed metal enclosed switchgear
XGN66A-12 box-type fixed AC metal-enclosed switchgear (hereinafter referred to as fixed cabinet) is our company’s absorption of foreign advanced technology, in response to the current high accident rate and bulkiness of similar switch cabinets in my country. A fixed high-voltage switchgear designed and developed by ourselves meets the requirements of the national standard GB/T3906 "3-35kV AC Metal-enclosed Switchgear" and the Ministry of Electric Power DL404 "Technical Conditions for Ordering Indoor AC High-voltage Switchgear", and also meets the requirements of the international Standard IEC298 "1kV above 52kV AC metal-enclosed switchgear and control equipment" requirements, and has two proposed "five prevention" locking function.
Detail + 白箭头 黑箭头
HXGN26-12(24) SF6 ring network switch equipment
HXGN26-12(24) SF6 ring network switch equipment
HXGN26-12(24) type SF6 ring main unit is a 12kV (24kV) ring main unit which adopts SF6 gas insulation and arc extinguishing, which is designed and developed by Tianan Electric after digesting and absorbing foreign advanced technology and combining with my country's power supply requirements.
Detail + 白箭头 黑箭头

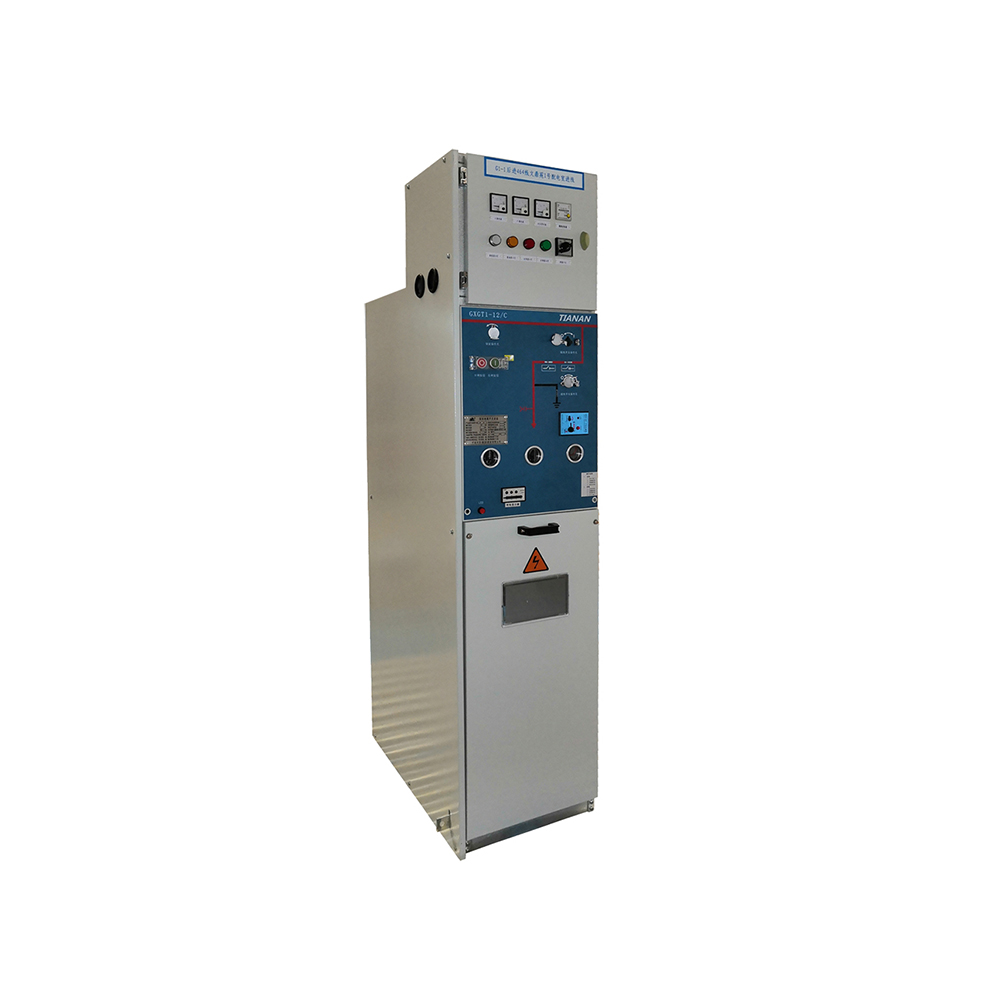

GXGT1-12 Solid Insulated Metal Enclosed Ring Network Switchgear
GXGT1-12 Solid Insulated Metal Enclosed Ring Network Switchgear
The GXGT1-12 (XGN108-12) solid ring main unit is the latest high-performance, green and environment-friendly 12kV ring main unit developed by Tianan Electric, which combines vacuum arc extinguishing and solid insulation technology. All live parts of the product are sealed. In the APG injection-molded epoxy resin shell, adjacent cabinets are connected by plug-in solid insulated bus bars, and the entire switchgear is not affected by the external environment.
Detail + 白箭头 黑箭头
HXGT6B-12 environmental protection gas insulated metal enclosed ring network switchgear
HXGT6B-12 environmental protection gas insulated metal enclosed ring network switchgear
The HXGT6B-12 type ring main unit is the latest high-performance, green and environmentally friendly 12kV intelligent ring main unit developed by Tianan Electric that combines vacuum arc extinguishing and (environmental) gas insulation technology.
Detail + 白箭头 黑箭头
HXGT6A-12(24) Gas insulated metal enclosed ring network switchgear
HXGT6A-12(24) Gas insulated metal enclosed ring network switchgear
HXGT6A-12(24) indoor gas-insulated metal-enclosed switchgear is a new generation of ring network switchgear independently developed by Tianan Electric, with a voltage level of 12kV (24kV).
Detail + 白箭头 黑箭头

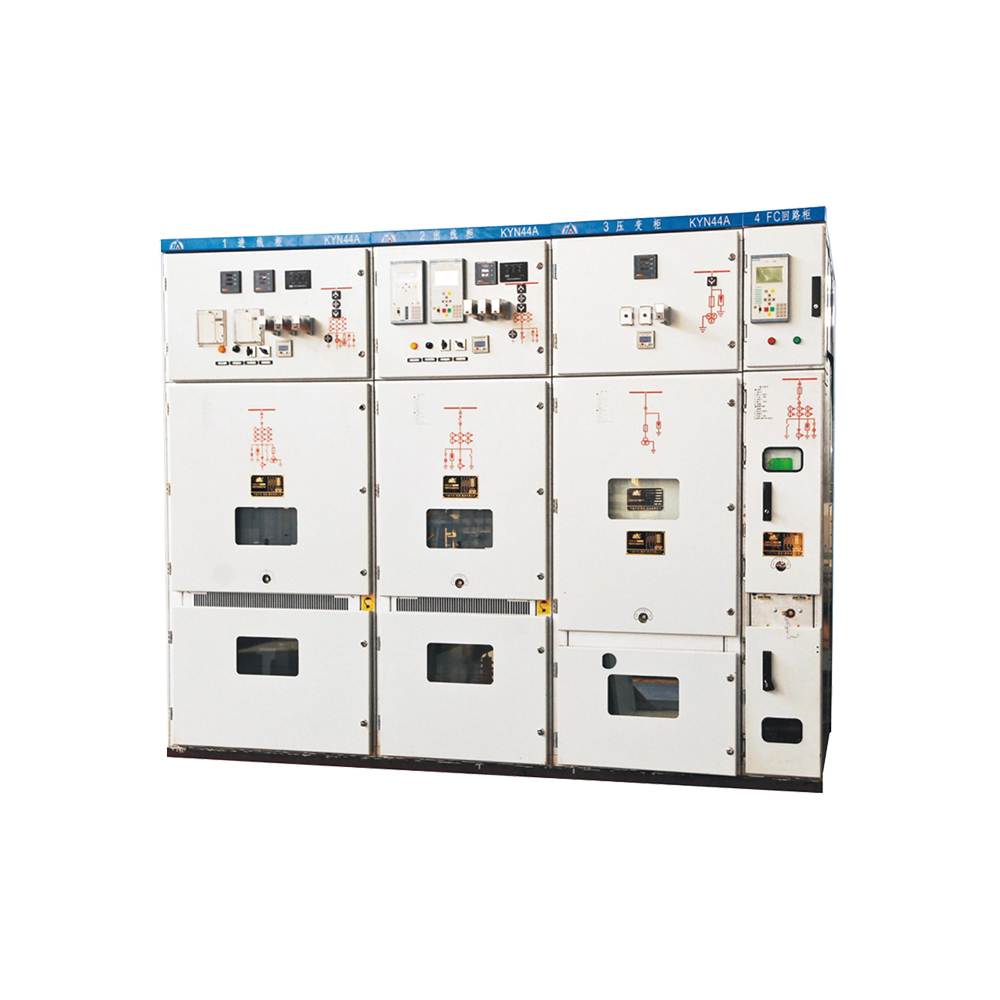

KYN44A-12 armored center-mounted AC metal-enclosed switchgear
KYN44A-12 armored center-mounted AC metal-enclosed switchgear
Class 1E KYN44A-12 indoor armored center-mounted AC metal-enclosed switchgear is a novel medium voltage switchgear developed by Tianan Electric according to the environmental conditions of nuclear power plants that meets the requirements of nuclear power plants 1E.
Detail + 白箭头 黑箭头

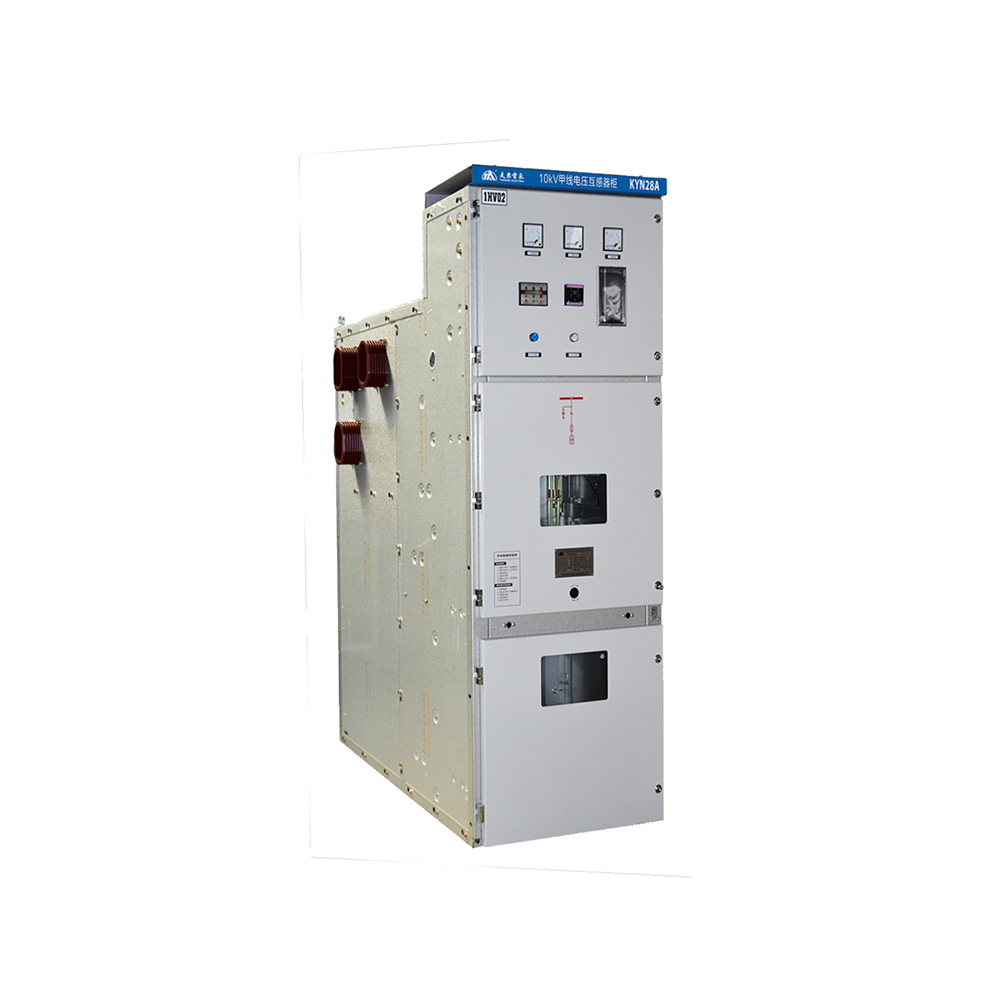

KYN28A-12(24) Armoured central AC metal enclosed switchgear
KYN28A-12(24) Armoured central AC metal enclosed switchgear
KYN28A-12 type indoor armored center-mounted AC metal-enclosed switchgear (referred to as center cabinet) is a complete set of power distribution equipment for 3-10kV three-phase AC 50Hz single bus and single bus section system.
Detail + 白箭头 黑箭头
XGN75-12 gas insulated metal enclosed switchgear
XGN75-12 gas insulated metal enclosed switchgear
XGN75-12 indoor gas-insulated metal-enclosed switchgear (hereinafter referred to as XGN75-12 inflatable cabinet) is a high-tech product independently developed by Tianan Electric that adopts vacuum arc extinguishing and SF6 gas insulation technology. The technical level has reached the leading domestic and international level. Advanced level. All high-voltage live components of the product are sealed in a stainless steel box (IP67) filled with SF6 gas of lower pressure (0.03~0.05MPa gauge pressure, 20℃). The main switch adopts a spring-operated vacuum circuit breaker with three stations. The isolation grounding switch of the product has stable insulation performance, and is especially suitable for harsh environments such as high altitude, severe cold, humidity, and pollution. Due to the small footprint of the product, it can be used in places with tight land.
Detail + 白箭头 黑箭头
HXGT10-40.5 gas insulated metal enclosed ring network switchgear
HXGT10-40.5 gas insulated metal enclosed ring network switchgear
HXGT10-40.5 indoor gas-insulated metal enclosed switchgear (hereinafter referred to as HXGT10-40.5 inflatable ring main unit) is a high-tech product independently developed by Tianan Electric that uses SF6 gas insulation technology, and its technical level has reached the domestic leading and international advanced level.
Detail + 白箭头 黑箭头

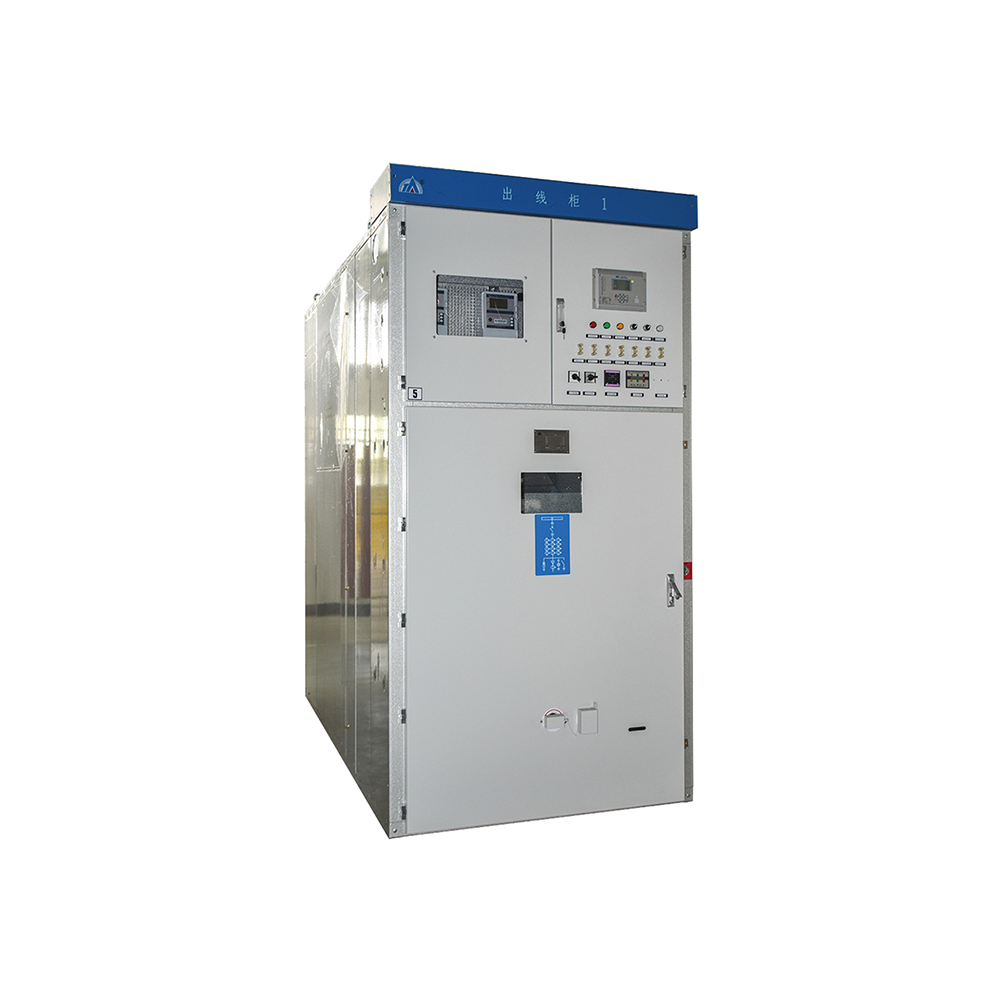

KYN61-40.5 Armored removable AC metal enclosed switchgear
KYN61-40.5 Armored removable AC metal enclosed switchgear
KYN61-40.5 armored removable AC metal-enclosed switchgear is an indoor complete set of power distribution equipment with three-phase AC 50Hz and rated voltage 40.5kV. It is used for power plant, small and medium-sized generator power transmission, power distribution of industrial and mining enterprises, and secondary substations of power systems, power transmission, and large high-voltage motor starting, etc., for control, protection, and monitoring. It has the interlock function to prevent the push-pull circuit breaker handcart with load, prevent the circuit breaker from being switched on and off by mistake, and to prevent the grounding switch from being switched on by mistake when the power is on.
Detail + 白箭头 黑箭头
XGN49-40.5 (24) gas insulated metal enclosed switchgear (C-GIS)
XGN49-40.5 (24) gas insulated metal enclosed switchgear (C-GIS)
XGN49 series indoor gas insulated metal-enclosed switchgear (C-GIS), hereinafter referred to as XGN49-40.5(24) inflatable cabinet, is a high-tech product independently developed by Tianan Electric that uses vacuum arc extinguishing and SF6 gas insulation technology. The level has reached the domestic leading and international advanced level.
Detail + 白箭头 黑箭头
